Graphs — history.html

Pick a device, pick one of its recorded states, pick a window, get a chart. Anything the SQL Logger has been recording can be drawn here without setting anything up first. Needs the SQL Logger.

Down the page

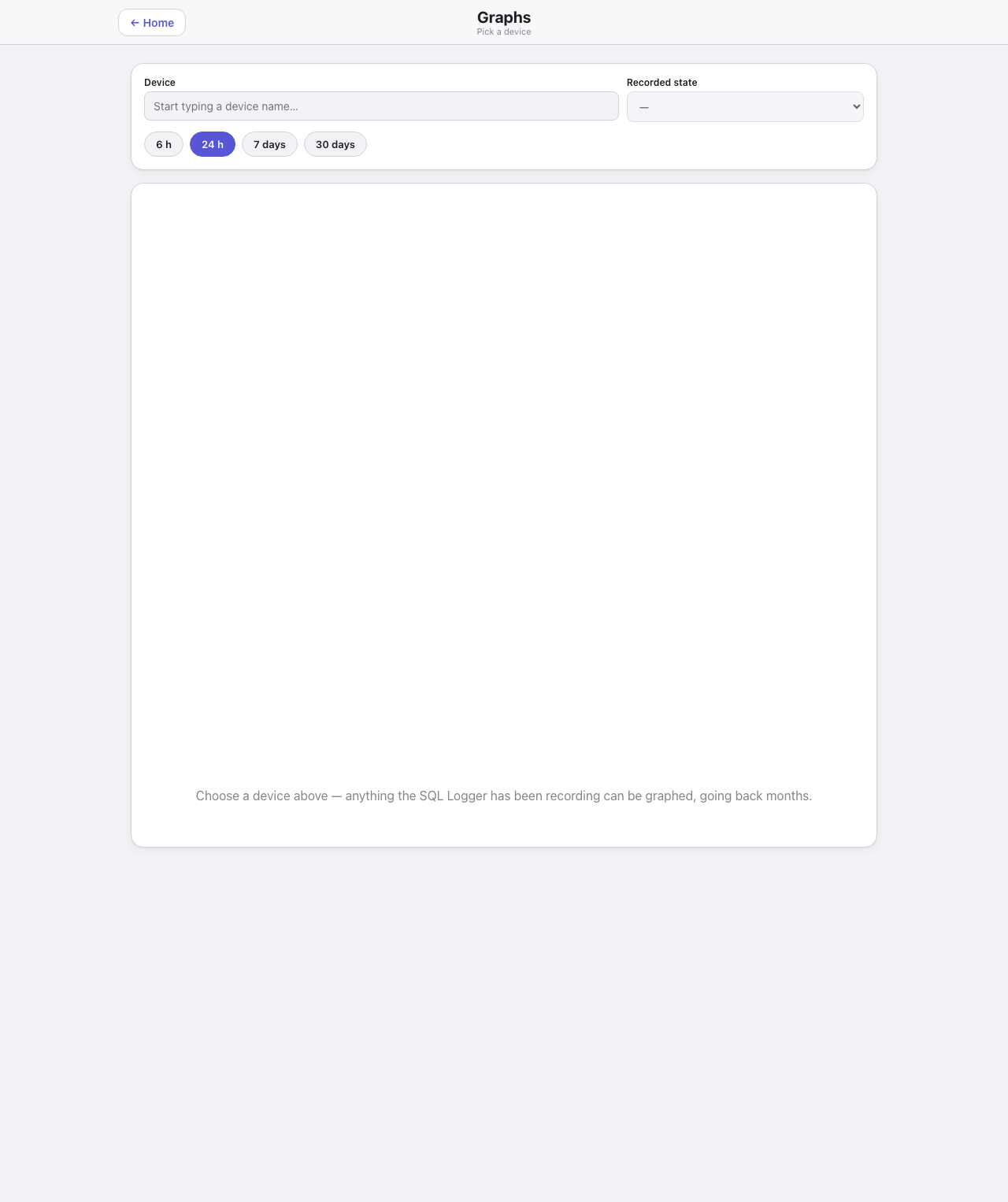

Picker card. A device field with type-ahead over the whole estate, a “Recorded state” dropdown listing only the states that device actually has history for, and four window pills: 6 h, 24 h, 7 days, 30 days.

Chart. A line for the bucketed average with a lighter band around it for the minimum and maximum inside each bucket — so a spike is visible as a spike rather than being averaged flat. The strip underneath gives the latest value, the minimum and maximum over the window, and the number of buckets.

Deep links

history.html?device=123456&state=batteryPowerWatts

The device parameter is an Indigo device id. A link that names a state opens that state; one that does not opens the device’s first recorded state.

Where the data comes from

historyQuery. The plugin does the bucketing server-side, and it queries by primary-key range rather than by timestamp. That is a requirement, not an optimisation: the history database has no index on the timestamp column, so a timestamp filter scans the whole table and stalls the SQL Logger’s own writes.

Refresh

None. The chart is drawn once per selection. Changing device, state or window fetches again.

What you can do here

Choose a device, a state and a window. Nothing else.

Worth knowing

• The state dropdown is populated from the history table’s real columns, which the SQL Logger stores lowercased. A state that exists on the device but has never been logged will not appear, and that is the correct answer rather than a gap.
• History rows are sparse: the logger only writes a value when it changes, so any single row is never a full snapshot. The server side forward-fills before bucketing.
• Timestamps in the database are UTC on SQLite. Everything drawn on this page is local, converted on the way out.
• A device with a very long history and a 30-day window is the heaviest single query the plugin serves. It is still bounded, because the window is converted to a row-id range before anything is read.
